●Principle

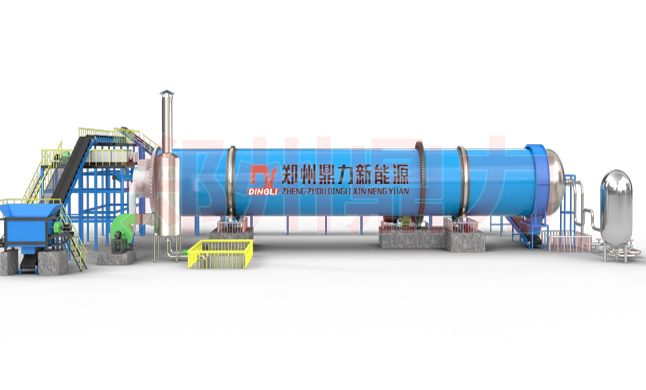

Heat conduction oil steam drum dryer, mainly composed of tube type heat exchanger, heat sources in and out the center pipe, rotary drum, feeding and discharger of the machine, induced draft fan, dust collector, and distribution cabinets. Wet material enters into the dryer, uniformly distributed in the roller feed plate and the column tube turning, with a full contact with hot conduction oil (steam) tube type heat exchanger, realizing heat transfer, mass transfer (110-250 ℃), constant temperature drying, water vaporization and scattered with the air emissions, gradually reduce the moisture from the material, the material has finished the drying process.

Technical Parameter

Model Input capacity(T/D) Raw material moisture(%) Final moisture(%) Total Power(KW) Covering area(㎡)
DLMG1916 300 ≤30 13±2 130 42*16
DLMG2220 500 ≤30 13±2 150 46*16
DLMG2522 800 ≤30 13±2 200 48*16
DLMG2825 1000 ≤30 13±2 250 51*16
DLMG3026 1300 ≤30 13±2 280 52*18
DLMG3228 1500 ≤30 13±2 330 55*18
DLMG3430 1800 ≤30 13±2 380 56*18
DLMG3632 2200 ≤30 13±2 450 58*18
DLMG3835 2700 ≤30 13±2 560 60*18
DLMG4036 3000 ≤30 13±2 660 60*18
