1.Application and Structural Principle
With the rapid development of the intensive livestock farming in the suburbs of big and medium sized cities, the environment pollution of the poultry dung becomes more and more serious. However, the poultry dung, on the other side, is the precious resource of feed and fertilizer, if it can be developed and utilized, it will be very significant to the development of the livestock and poultry farming and crop cultivation as well as saving grains and increasing production and income. Therefore, considering the market condition our company develops the fast drying equipment of poultry dung.

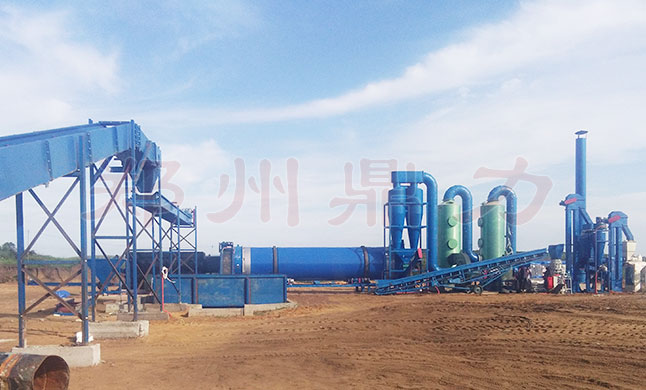

The poultry dung drying equipment can dry the poultry dung with moisture content as high as 70%-80% directly to 13% at a time, which is a safe value for store. The whole process is made in a closed system to reduce the environment pollution in the drying process. This equipment consists of combustion furnace, packing auger feeding equipment, drum crushing dryer, packing auger discharging equipment, dust control unit and fume exhaust system, etc. The flowchart sees the diagram.

2.Main Characteristics
1.Drum and the crushing equipment are of an adjustable rev, and continuous running.
2.Adopt circulating and sealing drying technology, the energy consumption is greatly reduced.
3.Less breakdown, low maintenance cost and low power loss
4.Realize sterilization and deodorization in process of drying.
3. Technical process(Click Here)

Technical Parameter

No Specifications of the common equipment Φ1.4*13m Φ1.6*13m Φ1.6*16m Remarks
1 Daily processing capacity for drying Cow dung 1-2m3/h 3-5m3/h 5-6m3/h Moisture content of raw material shall be less than 65%
2 Daily processing capacity for drying Fowl dung 1-2m3/h 3-5m3/h 5-6m3/h Moisture content of raw material shall be less than 75%
3 Total installed capacity 31.9kw 39.4kw 39.4kw
4 Standard coal consumption for per ton material is 150kg 150kg 150kg more than 6000 Cal.
5 Power consumption for per ton material 30° 30° 30°
6 Labor cost 20Yuan 20Yuan 20Yuan
7 Workshop area 5m(W)
*20m(L)*3.7m(H)
5m(W)
*20m(L)*3.7m(H)
5m(W)
*25m(L)*3.7m(H)

8 Reference price *** *** ***
Range of common specification: diameter Φ 0.9-3, length 14-45 meters
